ZB-3300 automatic spreading machine

Short Description:


Product Detail

Product Tags

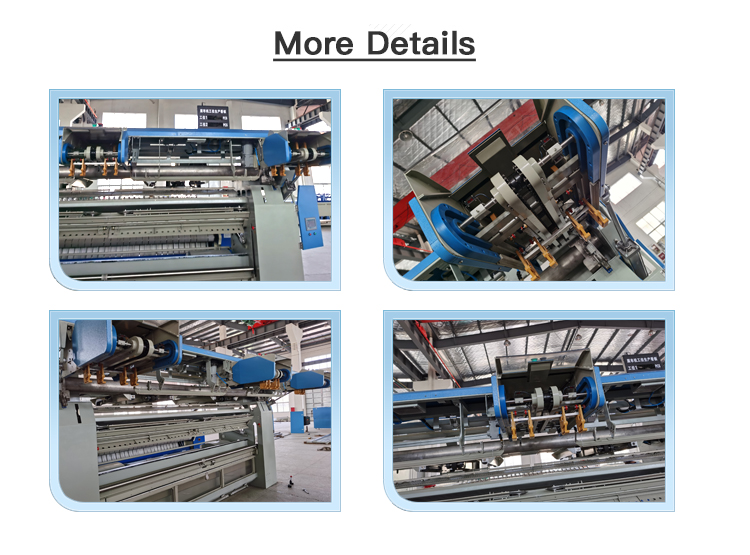

ZB-3300 automatic spreading machine is developed independently by our company adopting international advanced technology concept . The fabrics such as bed sheets and quilt covers can be smoothed and conveyed before entering the ironing machine , so that the fabric is in an ideal state when ironing.

Main parameters

Model

ZB-3300

Number of work stations

3

Number of channels

2

Air Pressure

0.6MPa

Air consumption

800L/min

Conveying rate

10-50m/min

Max product size(W * L)

3000*3000mm

Power

AC380V/50Hz

Motor power

7.7W

Dimension

4630*3290*2400

Weight

3000









All specifications subject to change without notice

● Adopt 10-inch color-increasing touch screen programmable computer control , each station has a statistical function , accurately measure the amount of feed , easy for the operator to manage .

● With station feeding function , high working efficiency and saving labor cost.

● It has the function of absorbing and smoothing the linen to improve the flatness of linen.

● The feeding speed is controlled by frequency conversion to adapt to the ironing process of different linens.

● The feeding and conveying platform can automatically expand and contract , can reach feed the function of wax doth and pillowcase , and it can also make the manual feeding of bed sheet quilt cover.

● The spreading manipulator is driven by a servo motor to accurately measure the length of the linen and keep the linen at the set feeding position

● Combined with high-speed ironing machine and folding machine , it can make synchronous linkage function.
