OEM/ODM Factory Stand For Ironing Clothes - automatic ironing machine – Taifeng Detail:
1. The name and type of the machine.
Y Ironing Machine
2. Function, feature of the machine.
The machine uses an electric motor and an imported frequency inverter, so the ironing speed can be adjusted in a stepless manner according to the width of cloth, different conditon of steam supply.
Rollers are made of Φ800 stainless steel. Other components are galvanized or being antiseptic treatment.
Quick heating effect. Direct heating type of drum. The utilization rate of effective contact surface is more than 85%.
Overload protection and emergency stop devices.
Advanced transmission design for better ironing results.
3. Specification and Accessories
|
MODEL |
Y1800I Z/D/R |
Y2800IZ/D/R |
Y2800IIZ/D/R |
Y3000IZ/D/R |
Y3000II Z/D/R |
Y3000IIIZ/R |
|
|
Ironing Length (mm) |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
|
|
Ironing Width (mm) |
≤1800 |
≤2800 |
≤2800 |
≤3000 |
≤3000 |
≤3000 |
|
|
Ironing Thickness(mm) |
≤3 |
≤3 |
≤3 |
≤3 |
≤3 |
≤3 |
|
|
Roller Diameter(mm) |
Φ800 |
Φ800 |
Φ800 |
Φ800 |
Φ800 |
Φ800 |
|
|
Roller Speed (r/min) |
0-3 |
0-3 |
0-8 |
0-3 |
0-8 |
0-12 |
|
|
Ironing Speed (m/min) |
0-7 |
0-7 |
0-19.9 |
0-7 |
0-19.9 |
0-30 |
|
|
Steam Pressure(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
|
|
Different Heating Method Consumption |
Steam (kg/h) |
50 |
80 |
150 |
85 |
150 |
230 |
|
Electric (kw) |
24 |
30 |
60 |
35 |
72 |
/ |
|
|
Gas (m3/h) |
6 |
8 |
16 |
8 |
16 |
24 |
|
|
Liquid Gas (kg/h) |
3 |
4 |
8 |
4 |
8 |
12 |
|
|
Motor Power (kw) |
0.55 |
0.75 |
1.5 |
0.75 |
1.5 |
2.2 |
|
|
Dimension (mm) |
2670×1580×1350 |
3820×1580×1350 |
3820×2490×1350 |
4050×1580×1350 |
4050×2490×1350 |
4050×3420×1350 |
|
|
Weight (kg) |
1150 |
1900 |
3100 |
2000 |
3300 |
4700 |
|
|
MODEL |
Y3000IVZ/R |
Y3000VZ/R |
Y3300IIZ/R |
Y3300IIIZ/R |
Y3300IVZ/R |
Y3300VZ/R |
|
|
Ironing Length (mm) |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
|
|
Ironing Width (mm) |
≤3000 |
≤3000 |
≤3300 |
≤3300 |
≤3300 |
≤3300 |
|
|
Ironing Thickness(mm) |
≤3 |
≤3 |
≤3 |
≤3 |
≤3 |
≤3 |
|
|
Roller Diameter(mm) |
Φ800 |
Φ800 |
Φ800 |
Φ800 |
Φ800 |
Φ800 |
|
|
Roller Speed (r/min) |
0-16 |
0-20 |
0-8 |
0-12 |
0-16 |
0-20 |
|
|
Ironing Speed (m/min) |
0-40 |
0-50 |
0-20 |
0-30 |
0-40 |
0-50 |
|
|
Steam Pressure(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
|
|
Different Heating Method Consumption |
Steam (kg/h) |
290 |
370 |
170 |
250 |
330 |
410 |
|
Gas (m3/h) |
32 |
40 |
16 |
24 |
32 |
40 |
|
|
Liquid Gas (kg/h) |
16 |
20 |
8 |
12 |
16 |
20 |
|
|
Motor Power (kw) |
3 |
4 |
1.5 |
2.2 |
3 |
4 |
|
|
Dimension (mm) |
4050×4340×1350 |
4050×5270×1350 |
4350×2490×1350 |
4350×3420×1350 |
4350×4340×1350 |
4350×5270×1350 |
|
|
Weight (kg) |
6000 |
7200 |
3350 |
4750 |
6100 |
7300 |
|
4. Documentation
1）Operational manual with English will be given at the time of dispatch of machine.
2）All our machines guaranteed for trouble free performance for a period of 12 months from commissioning.
3）Copy of ISO 9001 and CE certificate.
5. Delivery data and service after sell
1) Payment Terms
LC， WU，T/T
30% in advance, 70% before delivery.
2) Delivery Date
15-30 days upon your order Qty
3) Service After Sell
Installation and service after sell for free for one year, and with spare parts for one years. The air ticket from china to Client’s and Client’s to china will be paid by the buyer and the buyer should supply our engineer’s room and food!
4) Validity
30 days from the date of quotation
6. Quotation
FOB SHANGHAI
(Steam/Electric)USD GAS(USD)
Y1800IZ/D 3800
Y2500IZ/D 3900
Y2500IIZ/D 7400
Y2800IZ/D/R 4200 6600
Y2800IIZ/D/R 7700 11700
Y3000IZ/D/R 4900 6800
Y3000IIZ/D/R 8400 12500
Y3000IIIZ/D/R 11400 16350
Y3000IVZ/D/R 14500 21500
Y3000VZ/D/R 17150
Y3000VIZ/D/R 21000
Y3300IZ/D/R 5200 7150
Y3300IIZ/D/R 9000 12900
Y3300IIIZ/D/R 12650 18300
Y3300IVZ/D/R 16000 22000
Y3300VZ/D/R 19000

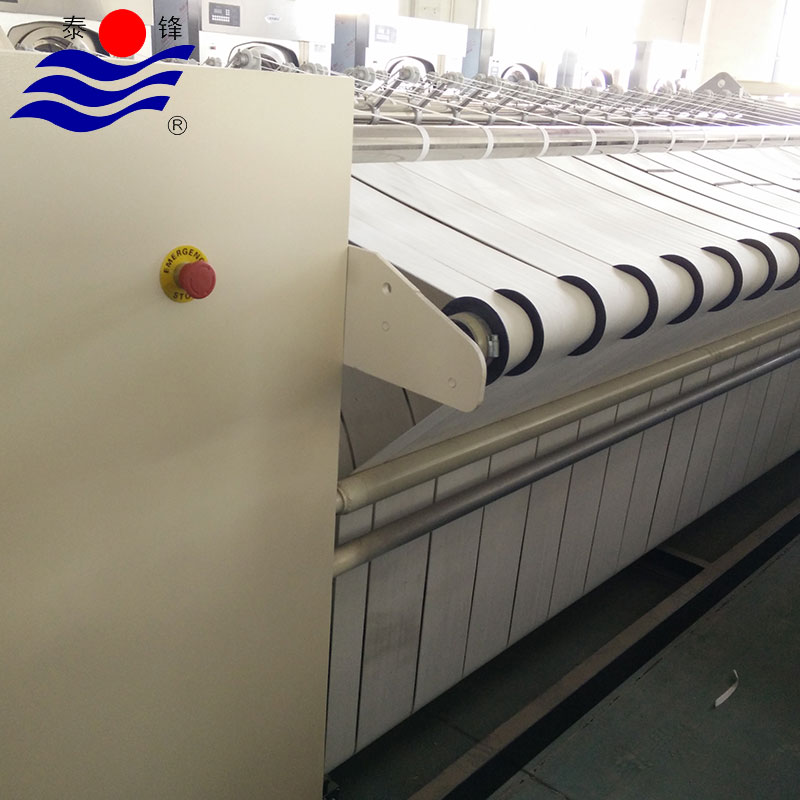

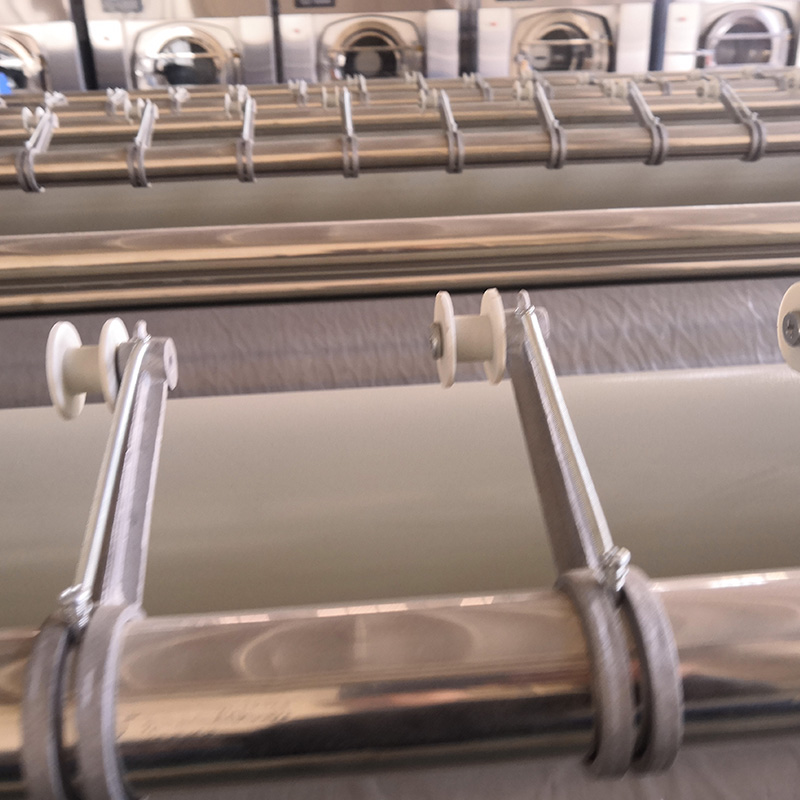

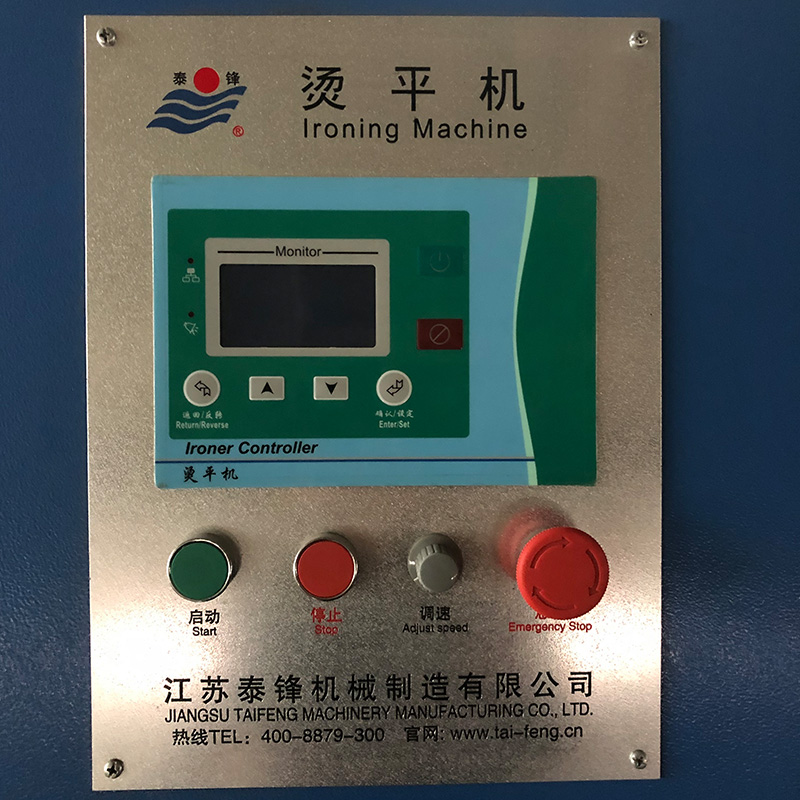

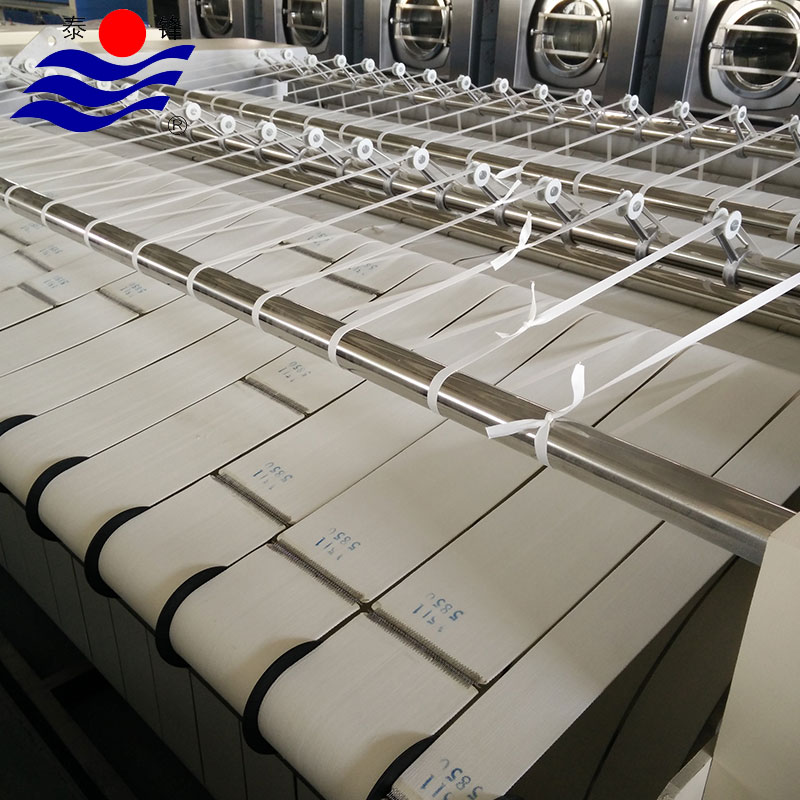

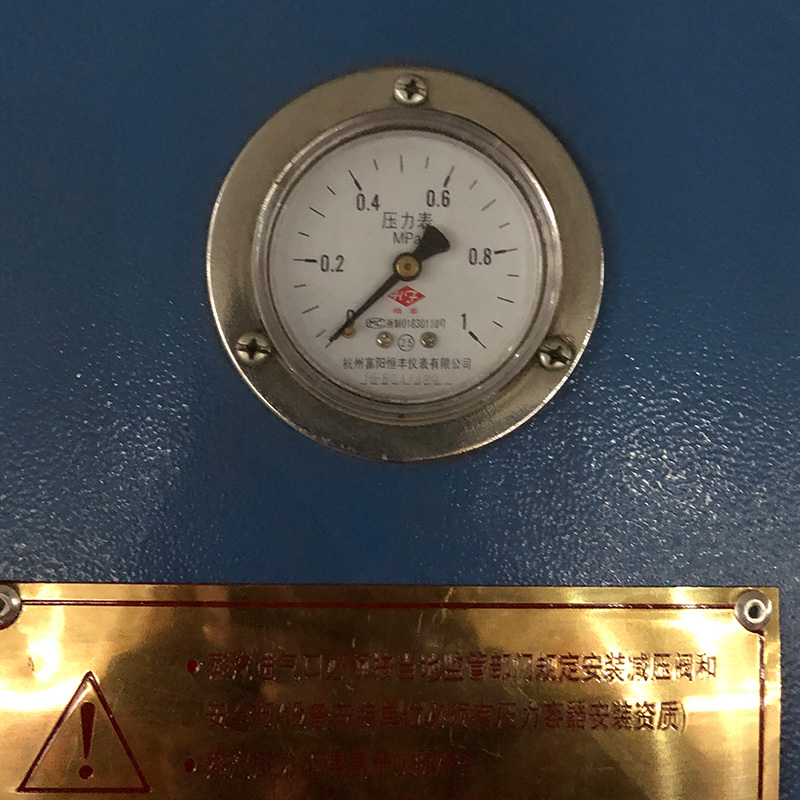

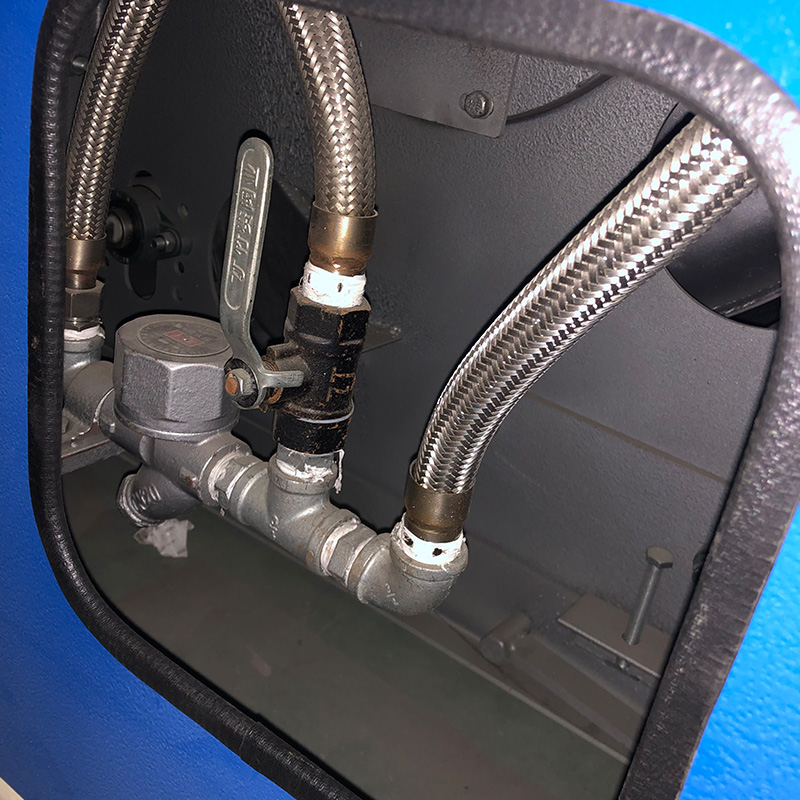

Product detail pictures:
