hydro extractor
1. The name and type of the machine.

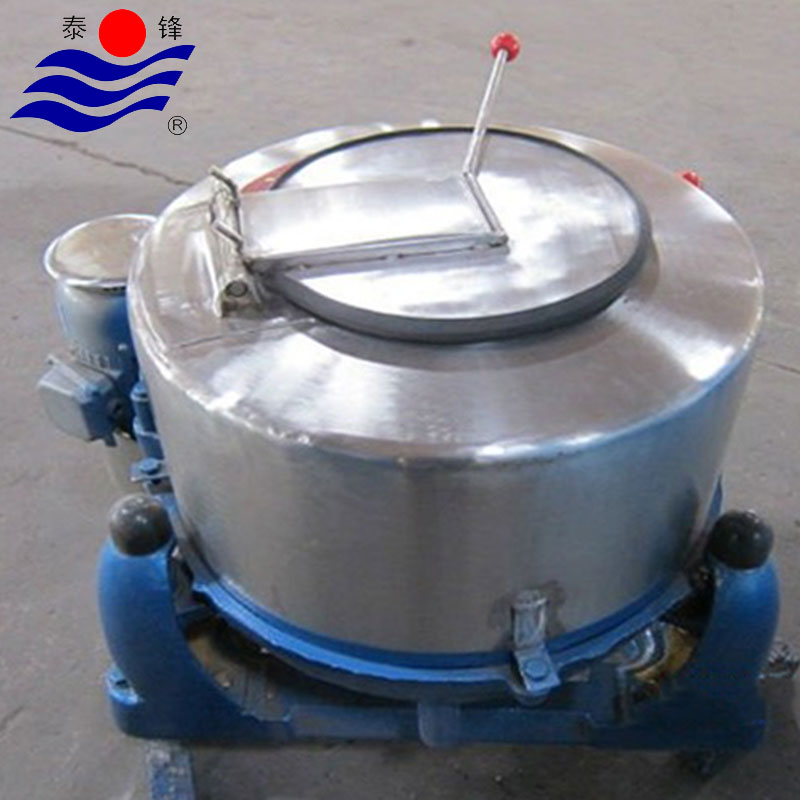

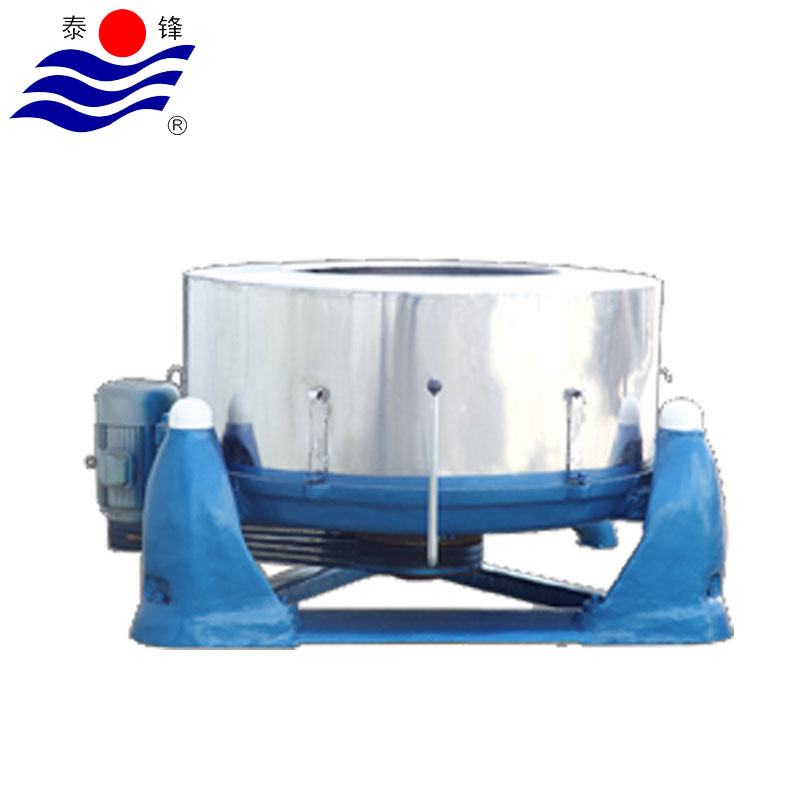

TL Spin Dryer (Hydro Extractor)
2. Function, feature of the machine.
1. high quality stainless steel
2. excellent performance
3. smooth running
4. high dewatering rate
5.ISO9001
6.factory wholesale
7.long service life
8.ease of operation
9.capacity from 30-600 kg
10.competitive price
11.spin dryer
12.three legs suspended structure, safe and reliable
The main parts adopt imported high quality stainless steel for lasting using.
Excellence performance, smooth running, high dewatering rate.
Among them, SME301-150 big capacity dewatering machine using West Germany Technology, is made in accordance with international standards. It has the characteristics of big capacity and low energy consumption.
It also has the system of shockproof, timing, antomation and safety control. The brake system adopts feet braking; smooth braking, easy and flexible to operate.
Starting wheel structure at the bottom of axes accelerates gradually the revolver during star-up without overloading the electromotor.
It is widely used in hotel, restaurant, hospital, enterprise to extract water for the garment made of cotton, wool, chemical fiber etc.
3. Specification
|
Model |
Drum Diameter |
Drum Height |
Extracting Speed |
Rate Capacity |
Motor Power |
Weight |
Dimension |
|
(mm) |
(mm) |
(rpm) |
(kg) |
(kw) |
(kg) |
(mm) |
|
|
TL-500 |
500 |
260 |
900 |
25 |
1.1 |
140 |
950×750×650 |
|
TL-600 |
600 |
270 |
900 |
40 |
3 |
180 |
1000×1000×750 |
|
TL-800 |
800 |
370 |
900 |
80 |
4 |
550 |
1400×1100×820 |
|
TL-1000 |
1000 |
380 |
880 |
100 |
5.5 |
1020 |
1725×1420×840 |
|
TL-1200 |
1200 |
500 |
820 |
220 |
7.5 |
1480 |
2100×1800×935 |
|
TL-1500 |
1500 |
600 |
750 |
400 |
11 |
2500 |
2550×1950×1400 |
4. Documentation
1）Operational manual with English will be given at the time of dispatch of machine.
2）All our machines guaranteed for trouble free performance for a period of 12 months from commissioning.
3）Copy of ISO 9001 and CE certificate.
5. Delivery data and service after sell
1) Payment Terms
T/T ,LC, WU
30% in advance, 70% before delivery.
2) Delivery Date
15-30 days upon your order Qty
3) Service After Sell
Installation and service after sell for free for one year and with spare parts for one year. The air ticket from china to Client’s and Client’s to china will be paid by the buyer and the buyer should supply our engineer’s room and food!
Related products
-

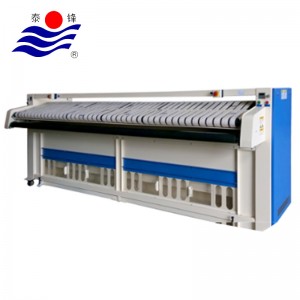

automatic ironing machine
1. The name and type of the machine. Y Ironing Machine 2. Function, feature of the machine. The machine uses an electric motor and an imported frequency inverter, so the ironing speed can be adjusted in a stepless manner according to the width of cloth, different conditon of steam supply. Rollers are made of Φ800 stainless steel. Other components are galvanized or being antiseptic treatment. Quick heating effect. Direct heating type of drum. The utilization rate of effective
-

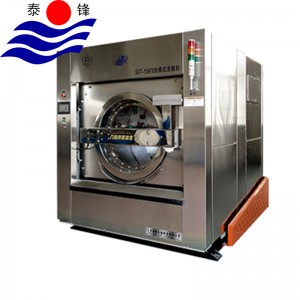

automatic tilting washer extractor
SXT-FX series automatic tilting washer extractor is developed based on automatic washer extractor, which can save labor and cost a lot. It is widely used in hotels, restaurants, hospitals, washing factories, garment factories, industrial&mining enterprises etc. Automatic tilting, suspension shock absorbtion, frequency speed control, convenient unloading. Touch screen type programmable microcomputer control is adopted, large screen dot matrix LCD display, interactive interface, has the fun...
-
automatic washer extractor
1. The name and type of the machine. SXT-15 & 20 & 30 & 50 & 70 & 100 Washer Extractor 2. Function, feature of the machine. full-automatic&manual big capacity can be chosen well-structured stainless steel Computer-controlled, automatic/manual, big washing capacity, good washing effect, low energy consuming, low noise and shaking, beautiful appearance. Advanced structure, reducing shaking by suspension. Speed control by frequency conversion, energy saving. It can be wid...
-

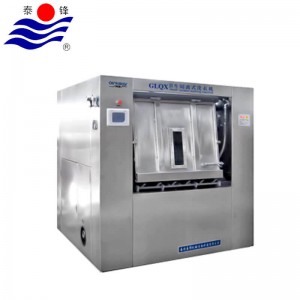

barrier washer extractor
