Hot New Products Industrial Drying Machine - drying machine – Taifeng Detail:

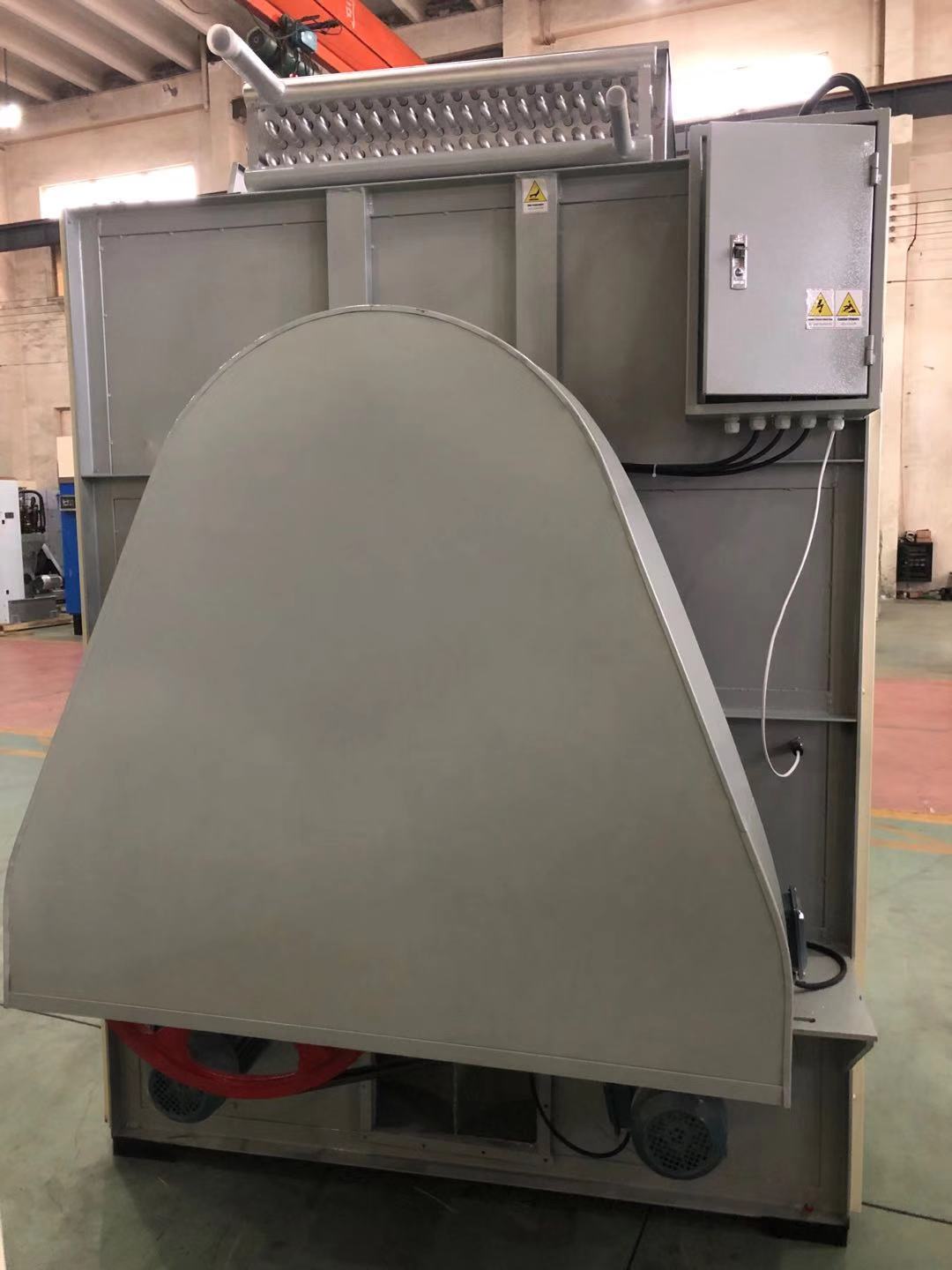

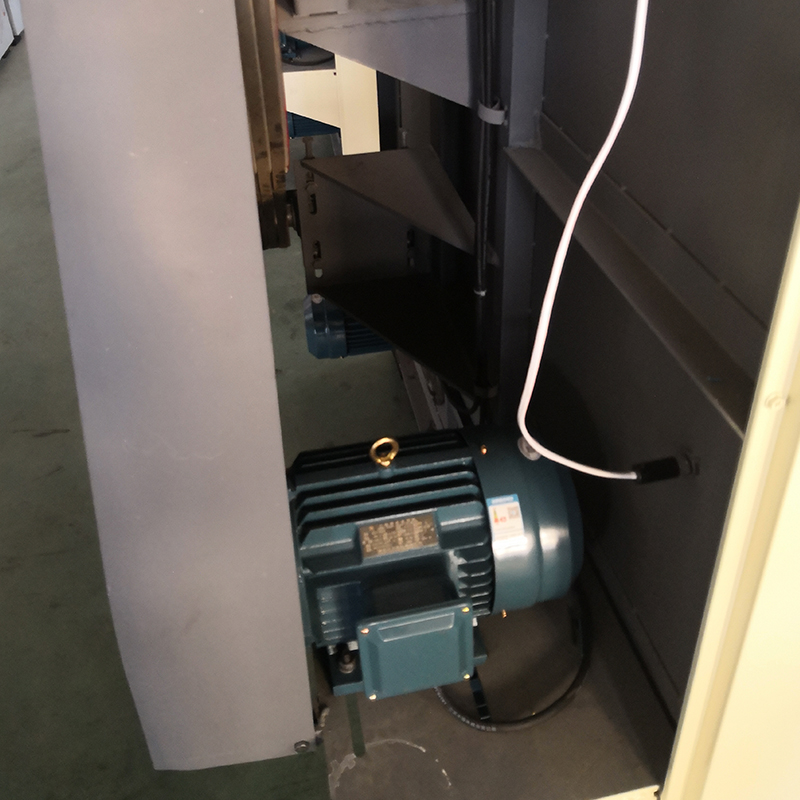

466 (6) 466 (1) 466 (2) 466 (3) 466 (4) 466 (5)

1. The name and type of the machine.

HG Drying Machine

2. Function, feature of the machine.

modern design

low energy consumption, low rate of wear, low noise

safe & reliable

widely used

high quality of stainless steel

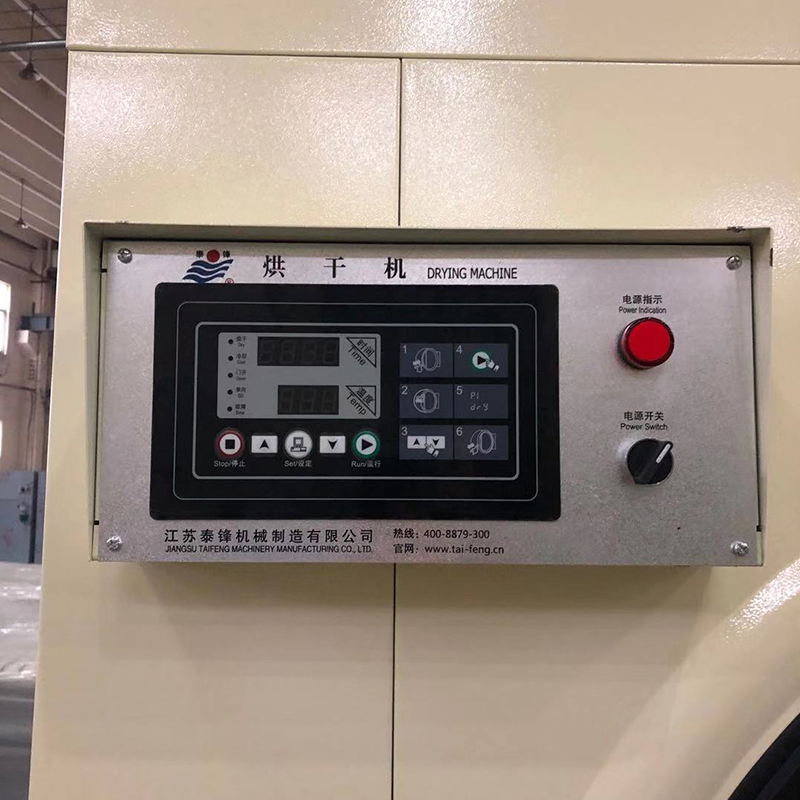

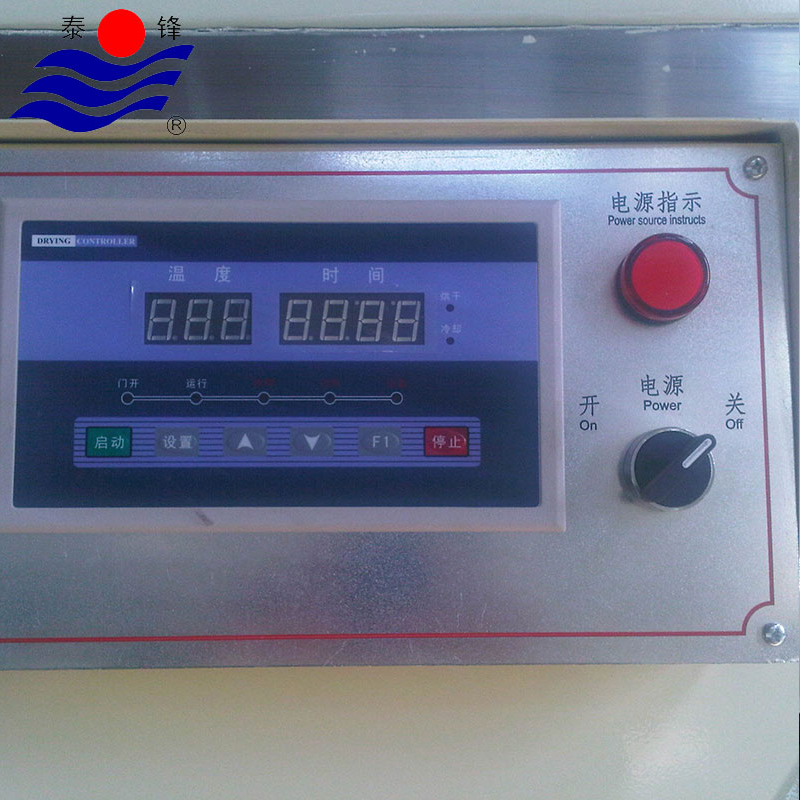

computer control

They can be used in hotels, inns, hospitals, laundering and dyeing shops, knitting mills, passenger transportation sections, troops, industrials mining enterprises etc. They are ideal machines for drying cotton, silk, chemical fiber goods etc.

Capacity can be chosen from15kg-150kg.

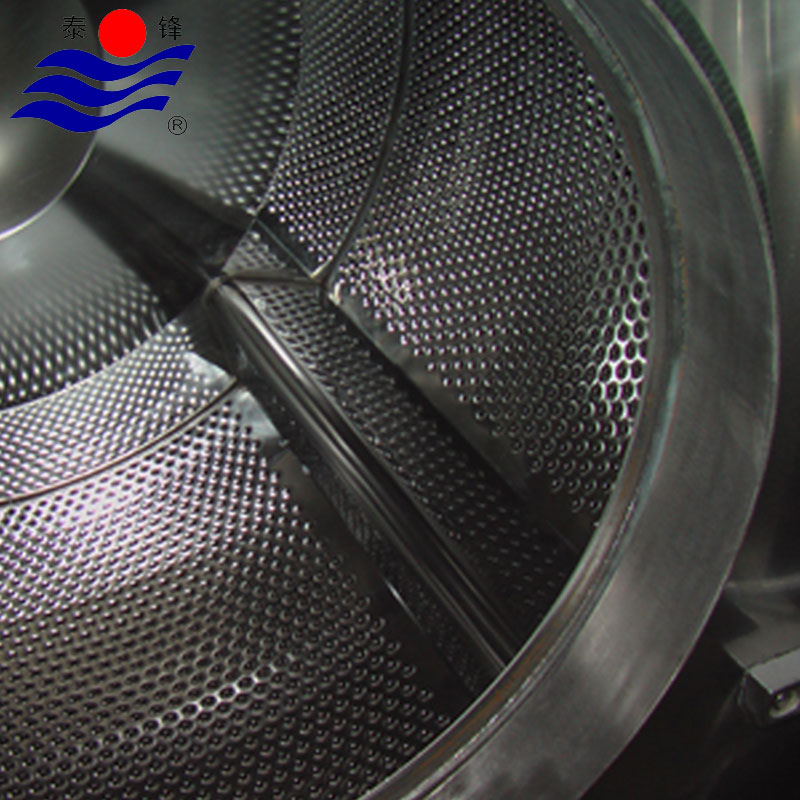

The drum is made of high quality stainless steel which can avoid rust, moreover, this will reduce the damage to the cloths in the drum.

Large lint collecting screen with large air vanes to ensure no air-ducting blockage and smooth air flow all the time.

We use world famous and high quality electronic components to ensure the stability of machine.

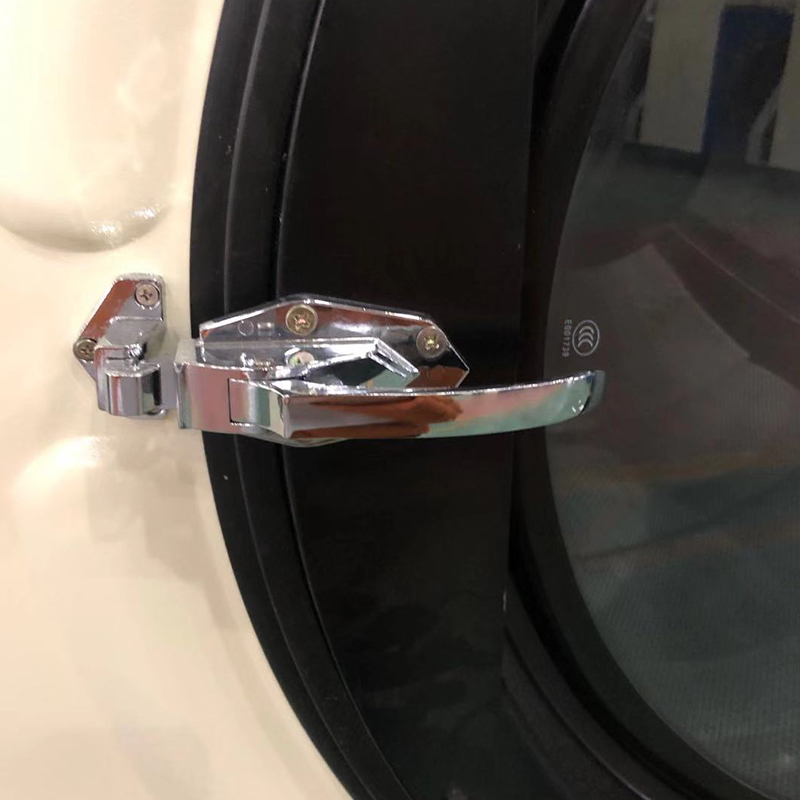

Large door, easy loading and unloading, opens 180°.

The main parts adopt imported high quality stainless steel for lasting using.

3. Specification

Model

HG-20

HG-30

HG-50

HG-100

HG-120

HG-150

Rated Capacity (kg)

20

30

50

100

120

150

Drum Size     (mm)

φ800×500

φ900×800

φ1080×1120

φ1470×1000

φ1470×1220

φ1600×1350

Drum Speed  (RPM)

32-35

30-33

30-33

30-33

30-33

29-31

Steam Pressure (MPa)

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

Electric Heating Power (kw)

12

15

24

48

/

/

Motor Power    (kw)

0.75

1.1

1.5

2.2

3

3

Fan Power (kw)

0.75

0.75

1.1

2×1.5

2×2.2

2×2.2

Dimension (mm)

950×980×1750

1000×1300×1890

1230×1700×2190

1650×1710×2450

1650×1960×2550

1820×2120×2560

Weight (kg)

290

580

600

800

900

1200

4. Documentation

1)Operational manual with English will be given at the time of dispatch of machine.

2)All our machines guaranteed for trouble free performance for a period of 12 months from commissioning.

3)Copy of ISO 9001 and CE certificate.

5. Delivery data and service after sell

1) Payment Terms

T/T  LC WU

30% in advance, 70% before delivery.

2) Delivery Date

15-30 days upon your order Qty

3) Service After Sell

Installation and service after sell for free for one year and with spare parts for one year. The air ticket from china to Client’s and Client’s to china will be paid by the buyer and the buyer should supply our engineer’s room and food!

4) Validity

30 days from the date of quotation

6. Quotation

FOB    SHANGHAI

USD

Steam/Electric Heated            Gas Heated

HG-20          1950                       2700

HG-30          2200                       2800

HG-50          2550                       3450

HG-70          2950

HG-100         3150                       5150

HG-120         3800                       5950

HG-150         4700

HG-200         6850

466 (5) 466 (4) 466 (3) 466 (2) 466 (1) 466 (6)
