High Quality for Washer And Dryer Sets - drying machine – Taifeng
High Quality for Washer And Dryer Sets - drying machine – Taifeng Detail:
1. The name and type of the machine.

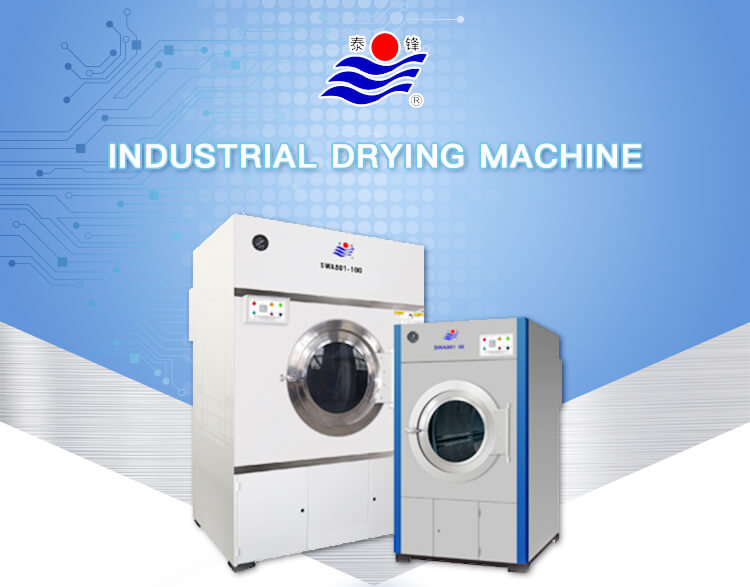

HG Drying Machine
2. Function, feature of the machine.
modern design
low energy consumption, low rate of wear, low noise
safe & reliable
widely used
high quality of stainless steel
computer control

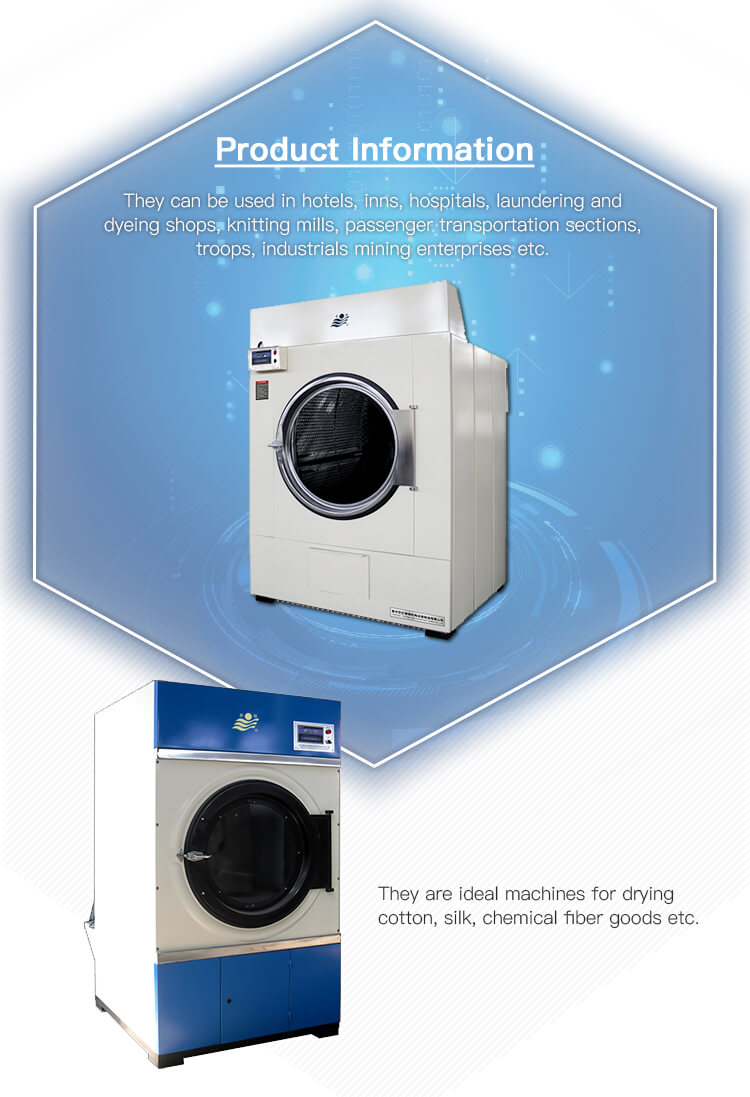

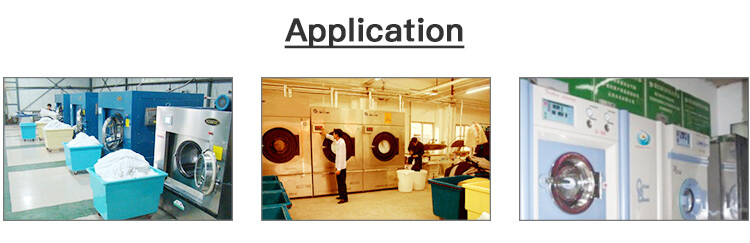

They can be used in hotels, inns, hospitals, laundering and dyeing shops, knitting mills, passenger transportation sections, troops, industrials mining enterprises etc. They are ideal machines for drying cotton, silk, chemical fiber goods etc.
Capacity can be chosen from15kg-150kg.
The drum is made of high quality stainless steel which can avoid rust, moreover, this will reduce the damage to the cloths in the drum.
Large lint collecting screen with large air vanes to ensure no air-ducting blockage and smooth air flow all the time.
We use world famous and high quality electronic components to ensure the stability of machine.
Large door, easy loading and unloading, opens 180°.
The main parts adopt imported high quality stainless steel for lasting using.
3. Specification
|
Model |
HG-20 |
HG-30 |
HG-50 |
HG-100 |
HG-120 |
HG-150 |
|
Rated Capacity (kg) |
20 |
30 |
50 |
100 |
120 |
150 |
|
Drum Size (mm) |
φ800×500 |
φ900×800 |
φ1080×1120 |
φ1470×1000 |
φ1470×1220 |
φ1600×1350 |
|
Drum Speed (RPM) |
32-35 |
30-33 |
30-33 |
30-33 |
30-33 |
29-31 |
|
Steam Pressure (MPa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
|
Electric Heating Power (kw) |
12 |
15 |
24 |
48 |
/ |
/ |
|
Motor Power (kw) |
0.75 |
1.1 |
1.5 |
2.2 |
3 |
3 |
|
Fan Power (kw) |
0.75 |
0.75 |
1.1 |
2×1.5 |
2×2.2 |
2×2.2 |
|
Dimension (mm) |
950×980×1750 |
1000×1300×1890 |
1230×1700×2190 |
1650×1710×2450 |
1650×1960×2550 |
1820×2120×2560 |
|
Weight (kg) |
290 |
580 |
600 |
800 |
900 |
1200 |
4. Documentation
1）Operational manual with English will be given at the time of dispatch of machine.
2）All our machines guaranteed for trouble free performance for a period of 12 months from commissioning.
3）Copy of ISO 9001 and CE certificate.
5. Delivery data and service after sell
1) Payment Terms
T/T LC WU
30% in advance, 70% before delivery.
2) Delivery Date
15-30 days upon your order Qty
3) Service After Sell
Installation and service after sell for free for one year and with spare parts for one year. The air ticket from china to Client’s and Client’s to china will be paid by the buyer and the buyer should supply our engineer’s room and food!
4) Validity
30 days from the date of quotation
6. Quotation
FOB SHANGHAI
USD
Steam/Electric Heated Gas Heated
HG-20 1950 2700
HG-30 2200 2800
HG-50 2550 3450
HG-70 2950
HG-100 3150 5150
HG-120 3800 5950
HG-150 4700
HG-200 6850

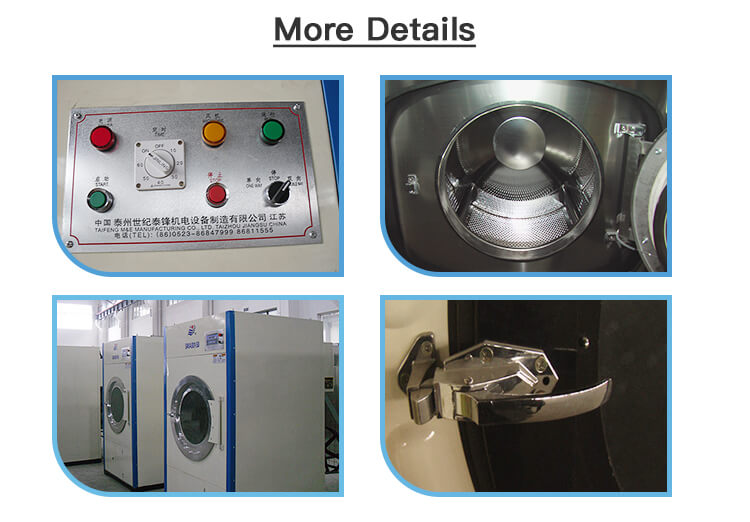

Product detail pictures:
